Innovation for drywall installation - drywall magnet "FAST INSTALL"
CHANGE THE WAY YOU WORK WITH DRYWALL
FAST INSTALL magnet for drywall is an aid for quick assembly and levelling of drywall metal frame. Laser-engraved lines on the magnet will make the work easier and faster.
DIFFERENT WORKING STYLE
SAVING TIME AND MATERIALS
27 MM MAGNET SECTION EQUALS TO THE PROFILE THICKNESS
With the help of the drywall magnet, you will easily install CD profiles without using a UD profile. Determine the lowest point of the ceiling using a laser. Push the profile mounted on the magnet until it reaches the laser line.
Using the fastener CD, for ceiling D112, the magnet is mounted vertically to the supporting CD profile along the fastener. The first line of the magnet repeats the bottom of the supporting CD profile, in other words, it is your ceiling zero.
FAST INSTALLATION OF WALLS
50 MM FROM THE UPPER PART OF THE MAGNET

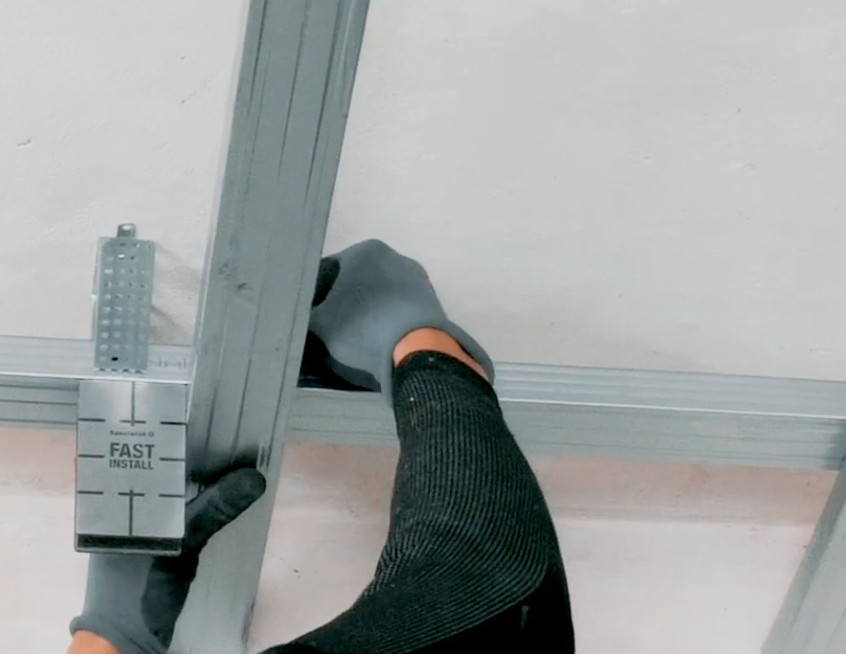

With installing the wall frame, use the middle line of the magnet (50 mm). Determine a 100 mm distance from the wall using a laser. Pusch the profile restrained by the magnet until it reaches the laser line.
Drywall installation with UD profile level with FAST INSTALL
INSTALLATION OF SECOND-LEVEL PROFILES
RESTRAINING THE CD PROFILE
When installing the second level of CD profiles, use the magnet, whose long side is 100 mm (the recommended distance of the first profile from the wall), istead of a tape measure or ruler.
WORK FOR ONE PERSON
WORK REQUIRES ONLY ONE PERSON
The drywall magnet easily supports a weight of as much as 10 kg, so only one person is required to perform the work.
EASY TO STRAIGHTEN THE CEILING
INSTALLATION OF DRYWALL BOARDS USING UD PROFILES
When using UD profiles, one FAST INSTALL magnet is enough to straighten the drywall ceiling frame.

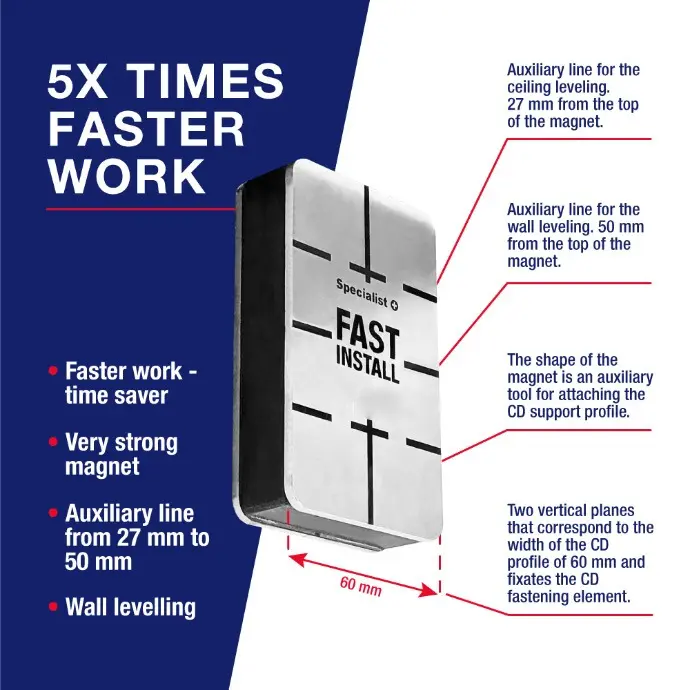

Aid line to level the ceiling, 27 mm from the top of the magnet

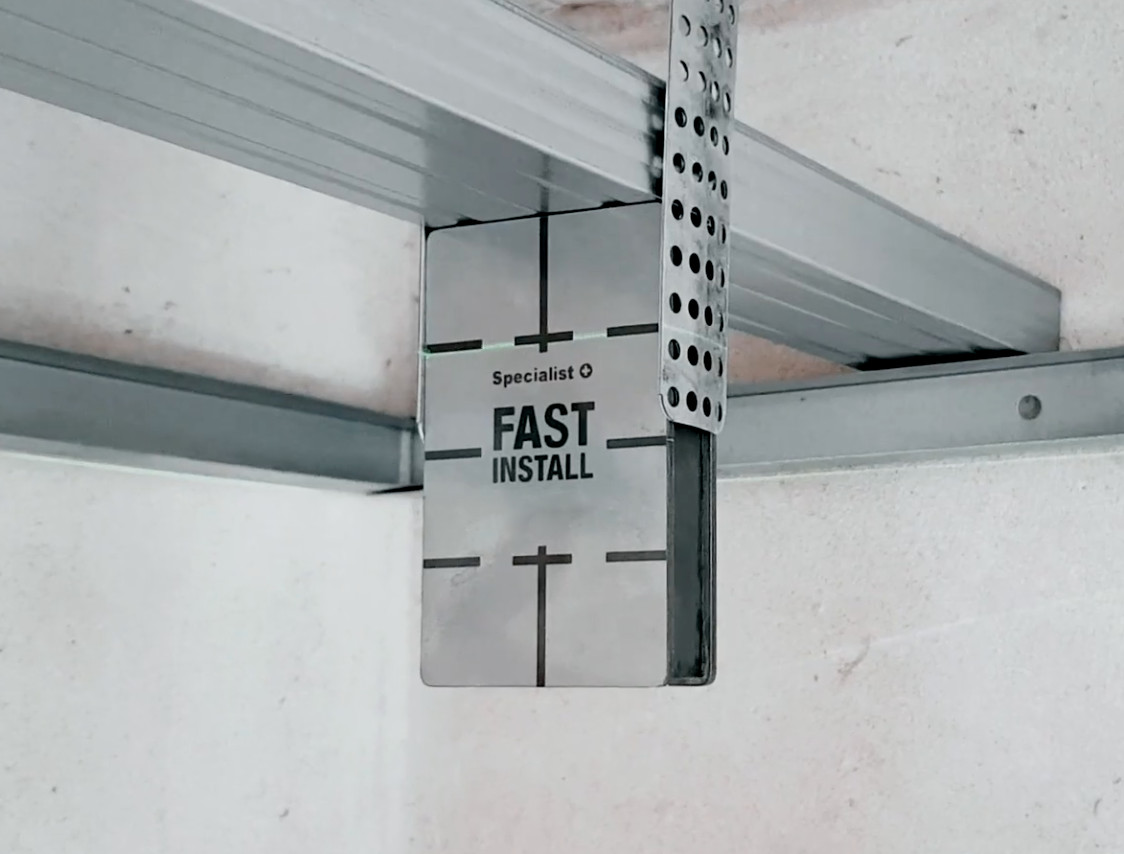

Gypsum magnet - an aid to levelling the ceiling. Using the fastener CD, for ceiling D112, the magnet is mounted vertically to the supporting CD profile along the fastener. The first line of the magnet repeats the bottom of the supporting CD profile, in the other words, it is your ceiling zero.
The magnet plane is an aid in attaching a supporting CD profile
The magnet is also an aid in assembling the D112 ceiling and a supporting CD profile. Mount it horizontally to the supporting CD profile and adjust the required distance between the centres of the profile.
Add line to level the wall, 50 mm from the top of the magnet
The magnet is an aid in levelling the wall by mounting it vertically to the CD profile, focussing on the middle line of the magnet and the position of the laser.
Aid line to level the ceiling, 27 mm from the top of the magnet
Using the fastener CD, for ceiling D112, the magnet is mounted vertically to the supporting CD profile along the fastener. The first line of the magnet repeats the bottom of the supporting CD profile, in other words, it is your ceiling zero.
